引入
Compose 其实是提供了 BottomSheet 的实现方式的,就是用官方的 BottomSheetScaffold
,但是却没有实现 BottomSheetDialog
,导致想要像 Dialog 那样使用 BottomSheetDialog 难以实现,每次都要在外面套一层 BottomSheetScaffold 大大加重了心智负担与嵌套复杂性。因此我将官方的 BottomSheet 实现直接全部 Copy 出来了一份稍作修改,实现独立的 BottomSheetDialog。
效果图

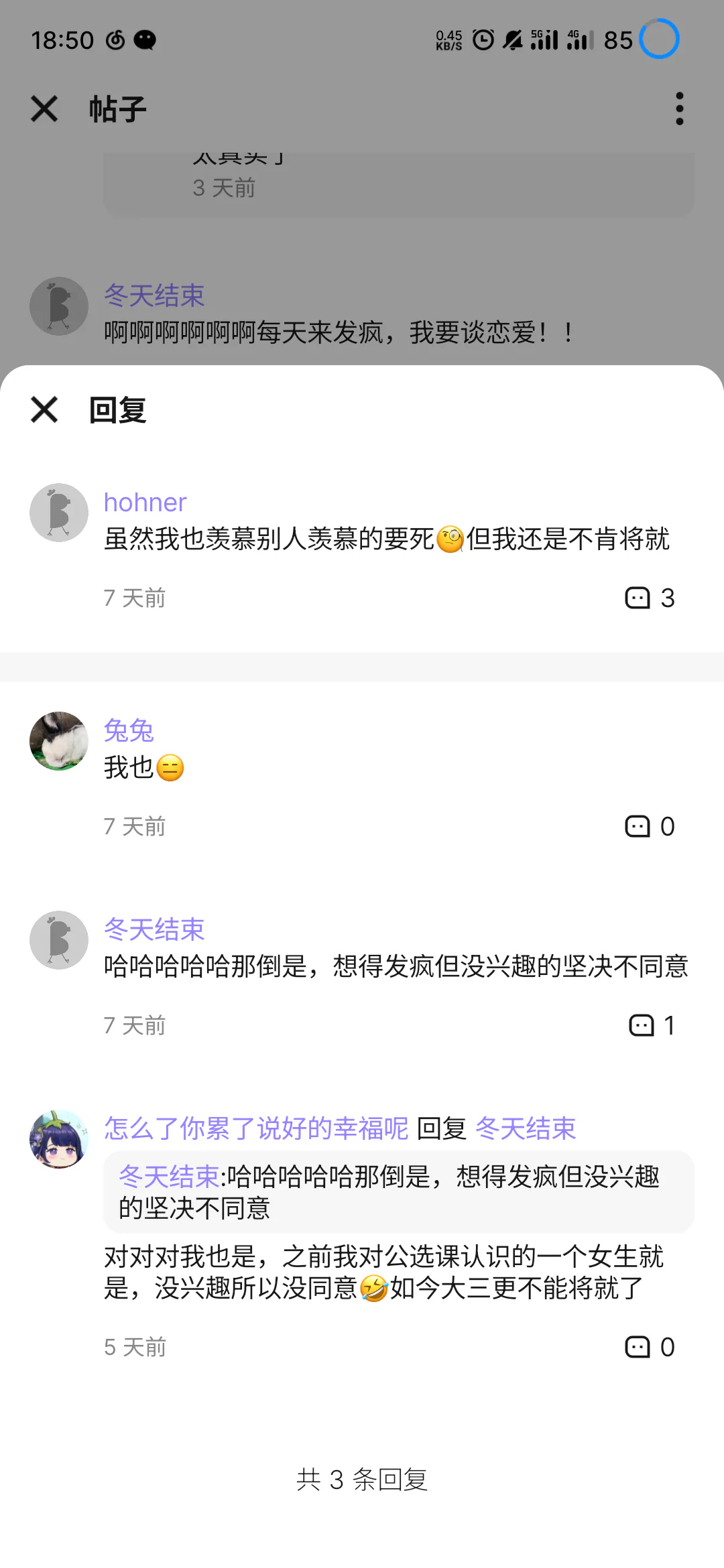

按规矩先上效果图:
以下是文件结构:
sheet
├── BottomSheetDialog.kt
├── BottomSheetDialogState.kt
└── DialogSwipeableState.kt
基本上所有代码都是从官方实现里拷贝出来的,只做了一些小的修改
具体代码
// BottomSheetDialog.kt
import androidx.compose.foundation.gestures.Orientation
import androidx.compose.foundation.layout.BoxWithConstraints
import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.ColumnScope
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.requiredHeightIn
import androidx.compose.material.BottomSheetScaffoldDefaults
import androidx.compose.material.ExperimentalMaterialApi
import androidx.compose.material.MaterialTheme
import androidx.compose.material.Surface
import androidx.compose.material.contentColorFor
import androidx.compose.runtime.Composable
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.remember
import androidx.compose.runtime.rememberCoroutineScope
import androidx.compose.runtime.setValue
import androidx.compose.ui.Modifier
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.graphics.Shape
import androidx.compose.ui.input.nestedscroll.nestedScroll
import androidx.compose.ui.layout.Layout
import androidx.compose.ui.layout.onGloballyPositioned
import androidx.compose.ui.platform.LocalDensity
import androidx.compose.ui.semantics.collapse
import androidx.compose.ui.semantics.expand
import androidx.compose.ui.semantics.semantics
import androidx.compose.ui.unit.Dp
import kotlinx.coroutines.launch
import kotlin.math.roundToInt
@OptIn(ExperimentalMaterialApi::class)
@Composable
fun BottomSheetDialog(
modifier: Modifier = Modifier,
bottomSheetDialogState: BottomSheetDialogState,
sheetGesturesEnabled: Boolean = true,
sheetShape: Shape = MaterialTheme.shapes.large,
sheetElevation: Dp = BottomSheetScaffoldDefaults.SheetElevation,
sheetBackgroundColor: Color = MaterialTheme.colors.surface,
sheetContentColor: Color = contentColorFor(sheetBackgroundColor),
sheetPeekHeight: Dp = BottomSheetScaffoldDefaults.SheetPeekHeight,
sheetContent: @Composable ColumnScope.() -> Unit,
) {
val scope = rememberCoroutineScope()
BoxWithConstraints(modifier) {
val fullHeight = constraints.maxHeight.toFloat()
val peekHeightPx = with(LocalDensity.current) { sheetPeekHeight.toPx() }
var bottomSheetHeight by remember { mutableStateOf(fullHeight) }
val swipeable = Modifier
.nestedScroll(bottomSheetDialogState.nestedScrollConnection)
.dialogSwipeable(
state = bottomSheetDialogState,
anchors = mapOf(
fullHeight to BottomSheetDialogValue.Hide,//隐藏状态时顶部Padding为fullHeight
fullHeight - peekHeightPx to BottomSheetDialogValue.Collapsed,
fullHeight - bottomSheetHeight to BottomSheetDialogValue.Expanded
),
orientation = Orientation.Vertical,
enabled = sheetGesturesEnabled,
resistance = null
)
.semantics {
if (peekHeightPx != bottomSheetHeight) {
if (bottomSheetDialogState.isCollapsed) {
expand {
if (bottomSheetDialogState.confirmStateChange(BottomSheetDialogValue.Expanded)) {
scope.launch { bottomSheetDialogState.expand() }
}
true
}
} else {
collapse {
if (bottomSheetDialogState.confirmStateChange(BottomSheetDialogValue.Collapsed)) {
scope.launch { bottomSheetDialogState.collapse() }
}
true
}
}
}
}
Layout(
content = {
Surface(
swipeable
.fillMaxWidth()
.requiredHeightIn(min = sheetPeekHeight)
.onGloballyPositioned {
bottomSheetHeight = it.size.height.toFloat()
},
shape = sheetShape,
elevation = sheetElevation,
color = sheetBackgroundColor,
contentColor = sheetContentColor,
content = { Column(content = sheetContent) }
)
}
) { measurables, constraints ->
layout(constraints.maxWidth, constraints.maxHeight) {
val sheetPlaceable =
measurables.first().measure(constraints.copy(minWidth = 0, minHeight = 0))
val sheetOffsetY = bottomSheetDialogState.offset.value.roundToInt()
sheetPlaceable.placeRelative(0, sheetOffsetY)
}
}
}
}
enum class BottomSheetDialogValue {
Hide,
//这里增加了一个隐藏的枚举
//官方的实现是只有折叠和展开两种状态的,没有隐藏状态
//因此我增加了一个隐藏的实现,配合官方实现只需要改动两个位置(这里的枚举和上面的注释处)就可以实现
//不得不说官方实现的扩展性确实很强
Collapsed,
Expanded
}
// BottomSheetDialogState.kt
import androidx.compose.animation.core.AnimationSpec
import androidx.compose.material.ExperimentalMaterialApi
import androidx.compose.material.SwipeableDefaults
import androidx.compose.runtime.Composable
import androidx.compose.runtime.Stable
import androidx.compose.runtime.saveable.Saver
import androidx.compose.runtime.saveable.rememberSaveable
@Stable
class BottomSheetDialogStateDialog(
initialValue: BottomSheetDialogValue,
animationSpec: AnimationSpec<Float> = SwipeableDefaults.AnimationSpec,
confirmStateChange: (BottomSheetDialogValue) -> Boolean = { true }
) : DialogSwipeableState<BottomSheetDialogValue>(
initialValue = initialValue,
animationSpec = animationSpec,
confirmStateChange = confirmStateChange
) {
/**
* Whether the bottom sheet is expanded.
*/
val isExpanded: Boolean
get() = currentValue == BottomSheetDialogValue.Expanded
/**
* Whether the bottom sheet is collapsed.
*/
val isCollapsed: Boolean
get() = currentValue == BottomSheetDialogValue.Collapsed
/**
* Expand the bottom sheet with animation and suspend until it if fully expanded or animation
* has been cancelled. This method will throw [CancellationException] if the animation is
* interrupted
*
* @return the reason the expand animation ended
*/
suspend fun expand() = animateTo(BottomSheetDialogValue.Expanded)
/**
* Collapse the bottom sheet with animation and suspend until it if fully collapsed or animation
* has been cancelled. This method will throw [CancellationException] if the animation is
* interrupted
*
* @return the reason the collapse animation ended
*/
suspend fun collapse() = animateTo(BottomSheetDialogValue.Collapsed)
companion object {
/**
* The default [Saver] implementation for [BottomSheetDialogStateDialog].
*/
@OptIn(ExperimentalMaterialApi::class)
fun Saver(
animationSpec: AnimationSpec<Float>,
confirmStateChange: (BottomSheetDialogValue) -> Boolean
): Saver<BottomSheetDialogStateDialog, *> = Saver(save = { it.currentValue }, restore = {
BottomSheetDialogStateDialog(
initialValue = it,
animationSpec = animationSpec,
confirmStateChange = confirmStateChange
)
})
}
internal val nestedScrollConnection = this.PreUpPostDownNestedScrollConnection
}
/**
* Create a [BottomSheetDialogStateDialog] and [remember] it.
*
* @param initialValue The initial value of the state.
* @param animationSpec The default animation that will be used to animate to a new state.
* @param confirmStateChange Optional callback invoked to confirm or veto a pending state change.
*/
@OptIn(ExperimentalMaterialApi::class)
@Composable
fun rememberBottomSheetDialogState(
initialValue: BottomSheetDialogValue,
animationSpec: AnimationSpec<Float> = SwipeableDefaults.AnimationSpec,
confirmStateChange: (BottomSheetDialogValue) -> Boolean = { true }
): BottomSheetDialogStateDialog {
return rememberSaveable(
animationSpec, saver = BottomSheetDialogStateDialog.Saver(
animationSpec = animationSpec, confirmStateChange = confirmStateChange
)
) {
BottomSheetDialogStateDialog(
initialValue = initialValue,
animationSpec = animationSpec,
confirmStateChange = confirmStateChange
)
}
}
//DialogSwipeableState.kt
import androidx.compose.animation.core.Animatable
import androidx.compose.animation.core.AnimationSpec
import androidx.compose.foundation.gestures.DraggableState
import androidx.compose.foundation.gestures.Orientation
import androidx.compose.foundation.gestures.draggable
import androidx.compose.foundation.interaction.MutableInteractionSource
import androidx.compose.material.ExperimentalMaterialApi
import androidx.compose.material.FixedThreshold
import androidx.compose.material.ResistanceConfig
import androidx.compose.material.SwipeProgress
import androidx.compose.material.SwipeableDefaults
import androidx.compose.material.SwipeableDefaults.AnimationSpec
import androidx.compose.material.ThresholdConfig
import androidx.compose.runtime.LaunchedEffect
import androidx.compose.runtime.Stable
import androidx.compose.runtime.State
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.saveable.Saver
import androidx.compose.runtime.setValue
import androidx.compose.runtime.snapshotFlow
import androidx.compose.ui.Modifier
import androidx.compose.ui.composed
import androidx.compose.ui.geometry.Offset
import androidx.compose.ui.input.nestedscroll.NestedScrollConnection
import androidx.compose.ui.input.nestedscroll.NestedScrollSource
import androidx.compose.ui.platform.LocalDensity
import androidx.compose.ui.platform.debugInspectorInfo
import androidx.compose.ui.unit.Dp
import androidx.compose.ui.unit.Velocity
import androidx.compose.ui.unit.dp
import kotlinx.coroutines.CancellationException
import kotlinx.coroutines.flow.Flow
import kotlinx.coroutines.flow.filter
import kotlinx.coroutines.flow.take
import kotlinx.coroutines.launch
import kotlin.math.abs
import kotlin.math.sign
@OptIn(ExperimentalMaterialApi::class)
@Stable
open class DialogSwipeableState<T>(
initialValue: T,
internal val animationSpec: AnimationSpec<Float> = AnimationSpec,
internal val confirmStateChange: (newValue: T) -> Boolean = { true }
) {
/**
* The current value of the state.
*
* If no swipe or animation is in progress, this corresponds to the anchor at which the
* [dialogSwipeable] is currently settled. If a swipe or animation is in progress, this corresponds
* the last anchor at which the [dialogSwipeable] was settled before the swipe or animation started.
*/
var currentValue: T by mutableStateOf(initialValue)
private set
/**
* Whether the state is currently animating.
*/
var isAnimationRunning: Boolean by mutableStateOf(false)
private set
/**
* The current position (in pixels) of the [dialogSwipeable].
*
* You should use this state to offset your content accordingly. The recommended way is to
* use `Modifier.offsetPx`. This includes the resistance by default, if resistance is enabled.
*/
val offset: State<Float> get() = offsetState
/**
* The amount by which the [dialogSwipeable] has been swiped past its bounds.
*/
val overflow: State<Float> get() = overflowState
// Use `Float.NaN` as a placeholder while the state is uninitialised.
private val offsetState = mutableStateOf(0f)
private val overflowState = mutableStateOf(0f)
// the source of truth for the "real"(non ui) position
// basically position in bounds + overflow
private val absoluteOffset = mutableStateOf(0f)
// current animation target, if animating, otherwise null
private val animationTarget = mutableStateOf<Float?>(null)
internal var anchors by mutableStateOf(emptyMap<Float, T>())
private val latestNonEmptyAnchorsFlow: Flow<Map<Float, T>> =
snapshotFlow { anchors }
.filter { it.isNotEmpty() }
.take(1)
internal var minBound = Float.NEGATIVE_INFINITY
internal var maxBound = Float.POSITIVE_INFINITY
internal fun ensureInit(newAnchors: Map<Float, T>) {
if (anchors.isEmpty()) {
// need to do initial synchronization synchronously :(
val initialOffset = newAnchors.getOffset(currentValue)
requireNotNull(initialOffset) {
"The initial value must have an associated anchor."
}
offsetState.value = initialOffset
absoluteOffset.value = initialOffset
}
}
internal suspend fun processNewAnchors(
oldAnchors: Map<Float, T>,
newAnchors: Map<Float, T>
) {
if (oldAnchors.isEmpty()) {
// If this is the first time that we receive anchors, then we need to initialise
// the state so we snap to the offset associated to the initial value.
minBound = newAnchors.keys.minOrNull()!!
maxBound = newAnchors.keys.maxOrNull()!!
val initialOffset = newAnchors.getOffset(currentValue)
requireNotNull(initialOffset) {
"The initial value must have an associated anchor."
}
snapInternalToOffset(initialOffset)
} else if (newAnchors != oldAnchors) {
// If we have received new anchors, then the offset of the current value might
// have changed, so we need to animate to the new offset. If the current value
// has been removed from the anchors then we animate to the closest anchor
// instead. Note that this stops any ongoing animation.
minBound = Float.NEGATIVE_INFINITY
maxBound = Float.POSITIVE_INFINITY
val animationTargetValue = animationTarget.value
// if we're in the animation already, let's find it a new home
val targetOffset = if (animationTargetValue != null) {
// first, try to map old state to the new state
val oldState = oldAnchors[animationTargetValue]
val newState = newAnchors.getOffset(oldState)
// return new state if exists, or find the closes one among new anchors
newState ?: newAnchors.keys.minByOrNull { abs(it - animationTargetValue) }!!
} else {
// we're not animating, proceed by finding the new anchors for an old value
val actualOldValue = oldAnchors[offset.value]
val value = if (actualOldValue == currentValue) currentValue else actualOldValue
newAnchors.getOffset(value) ?: newAnchors
.keys.minByOrNull { abs(it - offset.value) }!!
}
try {
animateInternalToOffset(targetOffset, animationSpec)
} catch (c: CancellationException) {
// If the animation was interrupted for any reason, snap as a last resort.
snapInternalToOffset(targetOffset)
} finally {
currentValue = newAnchors.getValue(targetOffset)
minBound = newAnchors.keys.minOrNull()!!
maxBound = newAnchors.keys.maxOrNull()!!
}
}
}
internal var thresholds: (Float, Float) -> Float by mutableStateOf({ _, _ -> 0f })
internal var velocityThreshold by mutableStateOf(0f)
internal var resistance: ResistanceConfig? by mutableStateOf(null)
internal val draggableState = DraggableState {
val newAbsolute = absoluteOffset.value + it
val clamped = newAbsolute.coerceIn(minBound, maxBound)
val overflow = newAbsolute - clamped
val resistanceDelta = resistance?.computeResistance(overflow) ?: 0f
offsetState.value = clamped + resistanceDelta
overflowState.value = overflow
absoluteOffset.value = newAbsolute
}
private suspend fun snapInternalToOffset(target: Float) {
draggableState.drag {
dragBy(target - absoluteOffset.value)
}
}
private suspend fun animateInternalToOffset(target: Float, spec: AnimationSpec<Float>) {
draggableState.drag {
var prevValue = absoluteOffset.value
animationTarget.value = target
isAnimationRunning = true
try {
Animatable(prevValue).animateTo(target, spec) {
dragBy(this.value - prevValue)
prevValue = this.value
}
} finally {
animationTarget.value = null
isAnimationRunning = false
}
}
}
/**
* The target value of the state.
*
* If a swipe is in progress, this is the value that the [dialogSwipeable] would animate to if the
* swipe finished. If an animation is running, this is the target value of that animation.
* Finally, if no swipe or animation is in progress, this is the same as the [currentValue].
*/
val targetValue: T
get() {
// TODO(calintat): Track current velocity (b/149549482) and use that here.
val target = animationTarget.value ?: computeTarget(
offset = offset.value,
lastValue = anchors.getOffset(currentValue) ?: offset.value,
anchors = anchors.keys,
thresholds = thresholds,
velocity = 0f,
velocityThreshold = Float.POSITIVE_INFINITY
)
return anchors[target] ?: currentValue
}
/**
* Information about the ongoing swipe or animation, if any. See [SwipeProgress] for details.
*
* If no swipe or animation is in progress, this returns `SwipeProgress(value, value, 1f)`.
*/
val progress: SwipeProgress<T>
get() {
val bounds = findBounds(offset.value, anchors.keys)
val from: T
val to: T
val fraction: Float
when (bounds.size) {
0 -> {
from = currentValue
to = currentValue
fraction = 1f
}
1 -> {
from = anchors.getValue(bounds[0])
to = anchors.getValue(bounds[0])
fraction = 1f
}
else -> {
val (a, b) =
if (direction > 0f) {
bounds[0] to bounds[1]
} else {
bounds[1] to bounds[0]
}
from = anchors.getValue(a)
to = anchors.getValue(b)
fraction = (offset.value - a) / (b - a)
}
}
return SwipeProgress(from, to, fraction)
}
/**
* The direction in which the [dialogSwipeable] is moving, relative to the current [currentValue].
*
* This will be either 1f if it is is moving from left to right or top to bottom, -1f if it is
* moving from right to left or bottom to top, or 0f if no swipe or animation is in progress.
*/
val direction: Float
get() = anchors.getOffset(currentValue)?.let { sign(offset.value - it) } ?: 0f
/**
* Set the state without any animation and suspend until it's set
*
* @param targetValue The new target value to set [currentValue] to.
*/
suspend fun snapTo(targetValue: T) {
latestNonEmptyAnchorsFlow.collect { anchors ->
val targetOffset = anchors.getOffset(targetValue)
requireNotNull(targetOffset) {
"The target value must have an associated anchor."
}
snapInternalToOffset(targetOffset)
currentValue = targetValue
}
}
/**
* Set the state to the target value by starting an animation.
*
* @param targetValue The new value to animate to.
* @param anim The animation that will be used to animate to the new value.
*/
suspend fun animateTo(targetValue: T, anim: AnimationSpec<Float> = animationSpec) {
latestNonEmptyAnchorsFlow.collect { anchors ->
try {
val targetOffset = anchors.getOffset(targetValue)
requireNotNull(targetOffset) {
"The target value must have an associated anchor."
}
animateInternalToOffset(targetOffset, anim)
} finally {
val endOffset = absoluteOffset.value
val endValue = anchors
// fighting rounding error once again, anchor should be as close as 0.5 pixels
.filterKeys { anchorOffset -> abs(anchorOffset - endOffset) < 0.5f }
.values.firstOrNull() ?: currentValue
currentValue = endValue
}
}
}
/**
* Perform fling with settling to one of the anchors which is determined by the given
* [velocity]. Fling with settling [dialogSwipeable] will always consume all the velocity provided
* since it will settle at the anchor.
*
* In general cases, [dialogSwipeable] flings by itself when being swiped. This method is to be
* used for nested scroll logic that wraps the [dialogSwipeable]. In nested scroll developer may
* want to trigger settling fling when the child scroll container reaches the bound.
*
* @param velocity velocity to fling and settle with
*
* @return the reason fling ended
*/
suspend fun performFling(velocity: Float) {
latestNonEmptyAnchorsFlow.collect { anchors ->
val lastAnchor = anchors.getOffset(currentValue)!!
val targetValue = computeTarget(
offset = offset.value,
lastValue = lastAnchor,
anchors = anchors.keys,
thresholds = thresholds,
velocity = velocity,
velocityThreshold = velocityThreshold
)
val targetState = anchors[targetValue]
if (targetState != null && confirmStateChange(targetState)) animateTo(targetState)
// If the user vetoed the state change, rollback to the previous state.
else animateInternalToOffset(lastAnchor, animationSpec)
}
}
/**
* Force [dialogSwipeable] to consume drag delta provided from outside of the regular [dialogSwipeable]
* gesture flow.
*
* Note: This method performs generic drag and it won't settle to any particular anchor, *
* leaving swipeable in between anchors. When done dragging, [performFling] must be
* called as well to ensure swipeable will settle at the anchor.
*
* In general cases, [dialogSwipeable] drags by itself when being swiped. This method is to be
* used for nested scroll logic that wraps the [dialogSwipeable]. In nested scroll developer may
* want to force drag when the child scroll container reaches the bound.
*
* @param delta delta in pixels to drag by
*
* @return the amount of [delta] consumed
*/
fun performDrag(delta: Float): Float {
val potentiallyConsumed = absoluteOffset.value + delta
val clamped = potentiallyConsumed.coerceIn(minBound, maxBound)
val deltaToConsume = clamped - absoluteOffset.value
if (abs(deltaToConsume) > 0) {
draggableState.dispatchRawDelta(deltaToConsume)
}
return deltaToConsume
}
companion object {
/**
* The default [Saver] implementation for [DialogSwipeableState].
*/
fun <T : Any> Saver(
animationSpec: AnimationSpec<Float>,
confirmStateChange: (T) -> Boolean
) = Saver<DialogSwipeableState<T>, T>(
save = { it.currentValue },
restore = { DialogSwipeableState(it, animationSpec, confirmStateChange) }
)
}
}
private fun <T> Map<Float, T>.getOffset(state: T): Float? {
return entries.firstOrNull { it.value == state }?.key
}
/**
* Given an offset x and a set of anchors, return a list of anchors:
* 1. [ ] if the set of anchors is empty,
* 2. [ x' ] if x is equal to one of the anchors, accounting for a small rounding error, where x'
* is x rounded to the exact value of the matching anchor,
* 3. [ min ] if min is the minimum anchor and x < min,
* 4. [ max ] if max is the maximum anchor and x > max, or
* 5. [ a , b ] if a and b are anchors such that a < x < b and b - a is minimal.
*/
private fun findBounds(
offset: Float,
anchors: Set<Float>
): List<Float> {
// Find the anchors the target lies between with a little bit of rounding error.
val a = anchors.filter { it <= offset + 0.001 }.maxOrNull()
val b = anchors.filter { it >= offset - 0.001 }.minOrNull()
return when {
a == null ->
// case 1 or 3
listOfNotNull(b)
b == null ->
// case 4
listOf(a)
a == b ->
// case 2
// Can't return offset itself here since it might not be exactly equal
// to the anchor, despite being considered an exact match.
listOf(a)
else ->
// case 5
listOf(a, b)
}
}
private fun computeTarget(
offset: Float,
lastValue: Float,
anchors: Set<Float>,
thresholds: (Float, Float) -> Float,
velocity: Float,
velocityThreshold: Float
): Float {
val bounds = findBounds(offset, anchors)
return when (bounds.size) {
0 -> lastValue
1 -> bounds[0]
else -> {
val lower = bounds[0]
val upper = bounds[1]
if (lastValue <= offset) {
// Swiping from lower to upper (positive).
if (velocity >= velocityThreshold) {
return upper
} else {
val threshold = thresholds(lower, upper)
if (offset < threshold) lower else upper
}
} else {
// Swiping from upper to lower (negative).
if (velocity <= -velocityThreshold) {
return lower
} else {
val threshold = thresholds(upper, lower)
if (offset > threshold) upper else lower
}
}
}
}
}
// temp default nested scroll connection for swipeables which desire as an opt in
// revisit in b/174756744 as all types will have their own specific connection probably
internal val <T> DialogSwipeableState<T>.PreUpPostDownNestedScrollConnection: NestedScrollConnection
get() = object : NestedScrollConnection {
override fun onPreScroll(available: Offset, source: NestedScrollSource): Offset {
val delta = available.toFloat()
return if (delta < 0 && source == NestedScrollSource.Drag) {
performDrag(delta).toOffset()
} else {
Offset.Zero
}
}
override fun onPostScroll(
consumed: Offset,
available: Offset,
source: NestedScrollSource
): Offset {
return if (source == NestedScrollSource.Drag) {
performDrag(available.toFloat()).toOffset()
} else {
Offset.Zero
}
}
override suspend fun onPreFling(available: Velocity): Velocity {
val toFling = Offset(available.x, available.y).toFloat()
return if (toFling < 0 && offset.value > minBound) {
performFling(velocity = toFling)
// since we go to the anchor with tween settling, consume all for the best UX
available
} else {
Velocity.Zero
}
}
override suspend fun onPostFling(consumed: Velocity, available: Velocity): Velocity {
performFling(velocity = Offset(available.x, available.y).toFloat())
return available
}
private fun Float.toOffset(): Offset = Offset(0f, this)
private fun Offset.toFloat(): Float = this.y
}
@OptIn(ExperimentalMaterialApi::class)
fun <T> Modifier.dialogSwipeable(
state: DialogSwipeableState<T>,
anchors: Map<Float, T>,
orientation: Orientation,
enabled: Boolean = true,
reverseDirection: Boolean = false,
interactionSource: MutableInteractionSource? = null,
thresholds: (from: T, to: T) -> ThresholdConfig = { _, _ -> FixedThreshold(56.dp) },
resistance: ResistanceConfig? = SwipeableDefaults.resistanceConfig(anchors.keys),
velocityThreshold: Dp = SwipeableDefaults.VelocityThreshold
) = composed(
inspectorInfo = debugInspectorInfo {
name = "swipeable"
properties["state"] = state
properties["anchors"] = anchors
properties["orientation"] = orientation
properties["enabled"] = enabled
properties["reverseDirection"] = reverseDirection
properties["interactionSource"] = interactionSource
properties["thresholds"] = thresholds
properties["resistance"] = resistance
properties["velocityThreshold"] = velocityThreshold
}
) {
require(anchors.isNotEmpty()) {
"You must have at least one anchor."
}
require(anchors.values.distinct().count() == anchors.size) {
"You cannot have two anchors mapped to the same state."
}
val density = LocalDensity.current
state.ensureInit(anchors)
LaunchedEffect(anchors, state) {
val oldAnchors = state.anchors
state.anchors = anchors
state.resistance = resistance
state.thresholds = { a, b ->
val from = anchors.getValue(a)
val to = anchors.getValue(b)
with(thresholds(from, to)) { density.computeThreshold(a, b) }
}
with(density) {
state.velocityThreshold = velocityThreshold.toPx()
}
state.processNewAnchors(oldAnchors, anchors)
}
Modifier.draggable(
orientation = orientation,
enabled = enabled,
reverseDirection = reverseDirection,
interactionSource = interactionSource,
startDragImmediately = state.isAnimationRunning,
onDragStopped = { velocity -> launch { state.performFling(velocity) } },
state = state.draggableState
)
}
使用方法
使用方法与普通的 Dialog 使用方法一致,如下:
val state = rememberBottomSheetDialogState(initialValue = BottomSheetDialogValue.Collapsed)//初始状态,这里设为折叠
BottomSheetDialog(
modifier = Modifier.systemBarsPadding(),
// Modifier 设置一下系统栏边距,防止展开的时候跑到状态栏内了
bottomSheetDialogState = state,
sheetPeekHeight = 200.dp,//折叠状态下高度
sheetShape = RoundedCornerShape(topStart = 16.dp, topEnd = 16.dp),//Sheet形状,这里设置顶部两个小圆角
sheetBackgroundColor = Color.White,//背景颜色
sheetGesturesEnabled = true,//是否允许用户拖拽
sheetElevation = 0.dp//设置Sheet阴影高度
) {
//BottomSheet 内的内容
}
